Features:

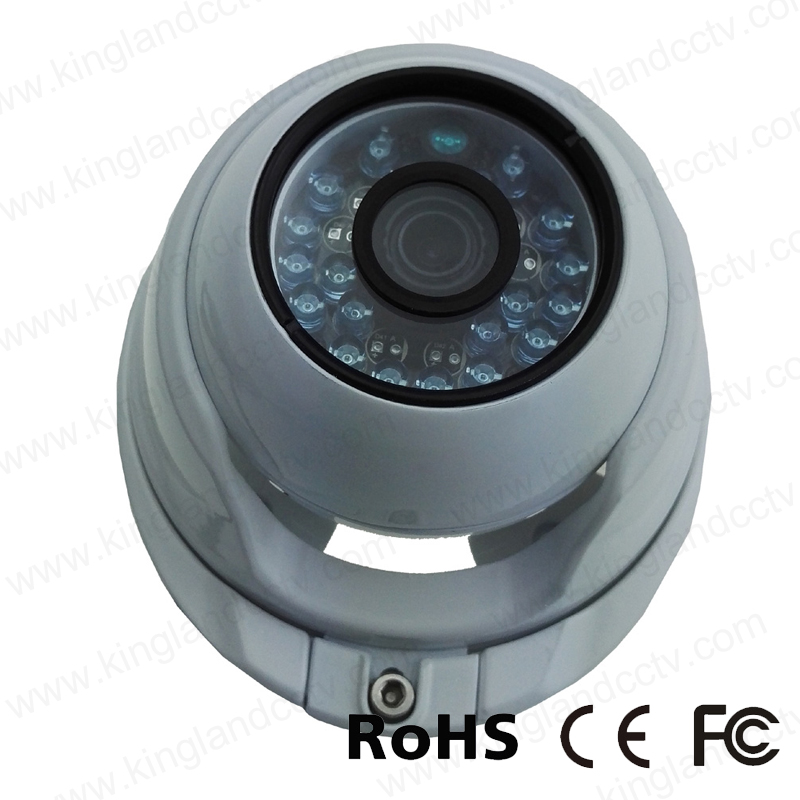

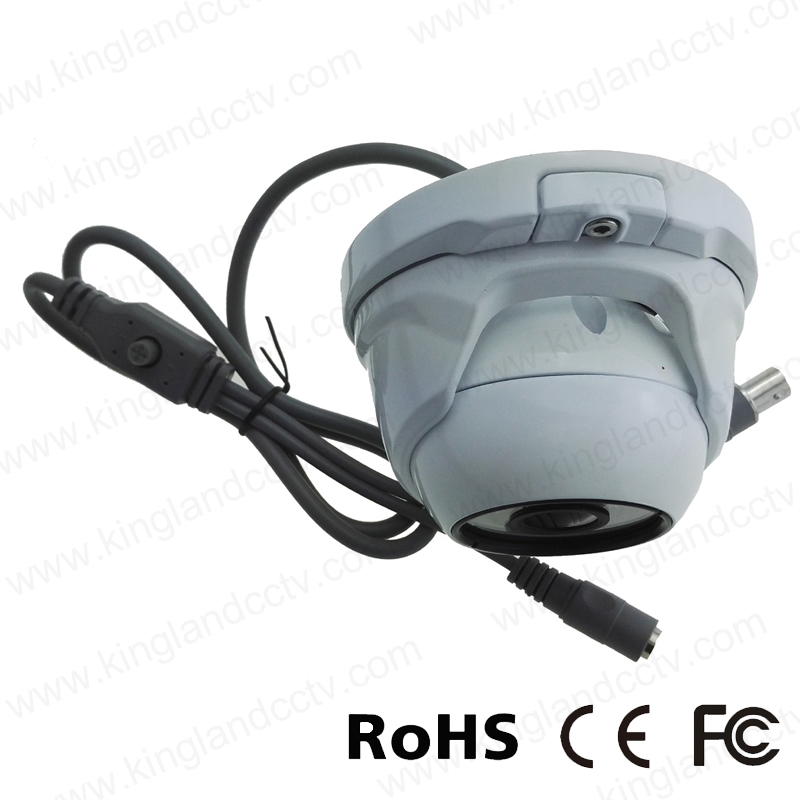

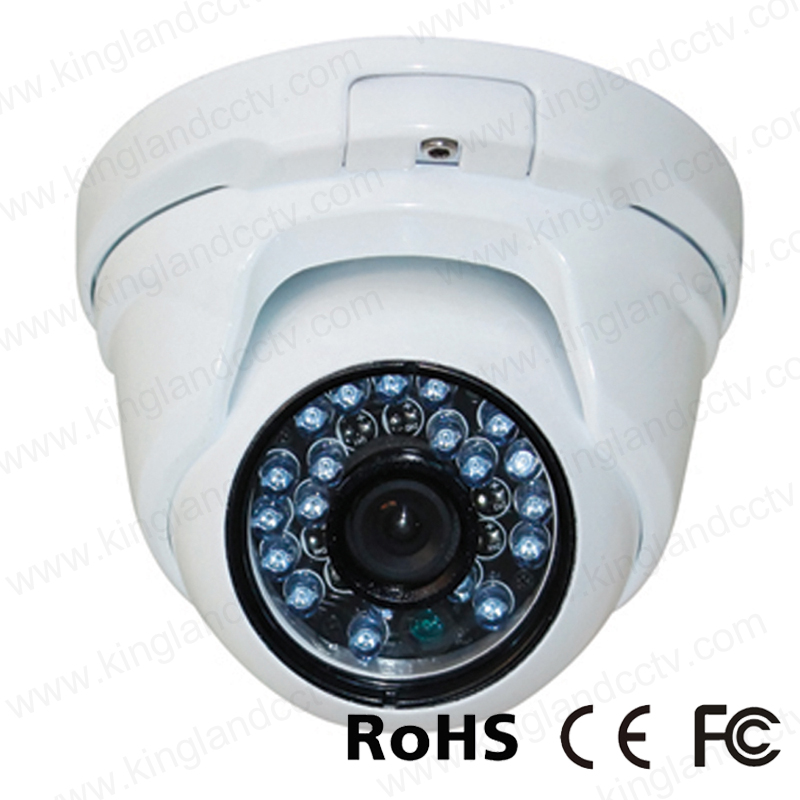

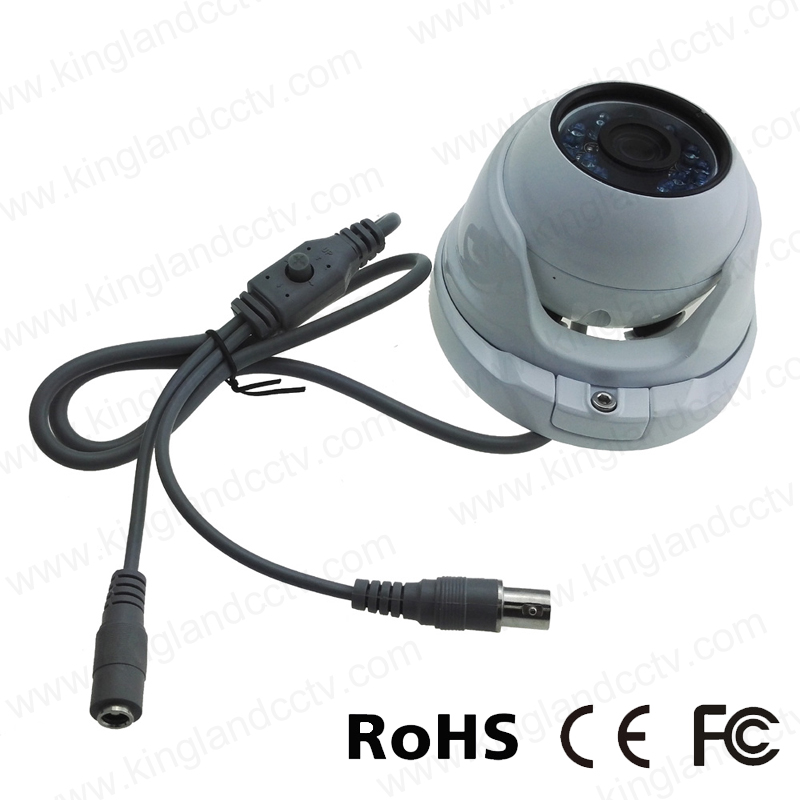

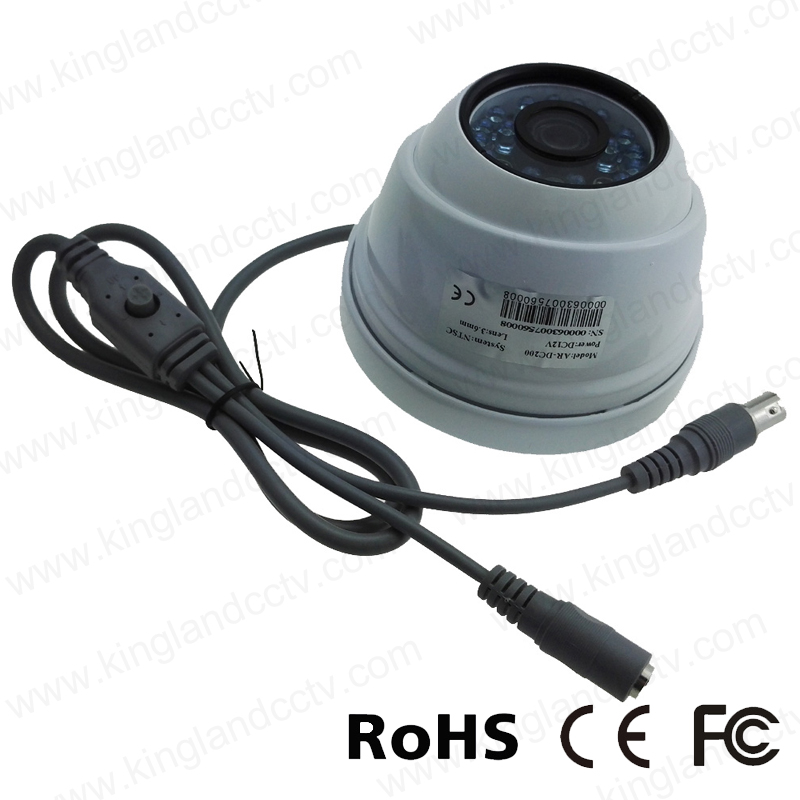

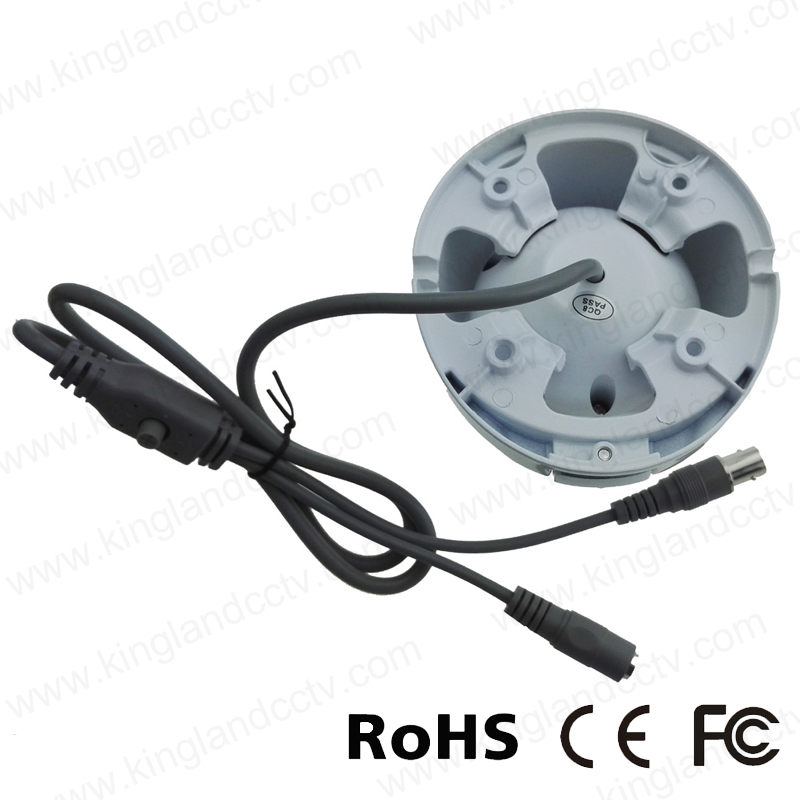

1.0Megapixel 720P AHD CCTV Camera;
1/4" OV9712 CMOS Sensor, NVP2431H ISP Processor;
High Definition , resolution at 1280 x 720;
Horizontal resolution 1000TVL,low Lux at 0.1;
Support OSD menu control, PAL / NTSC setup on OSD menu.
Excellent performance, clear and bright picture;
3D-DNR, Defog, Day/Night switch, Multi Language;
OSD,BLC,Motion Detection,Privacy Masking;
f3.6mm HD Lens, built-in IR Cut Module, better night vision;
5X24pcs IR LEDS, IR Distance more than 20M;
IP66 Weatherproof indoor / outdoor using.
Specification:
|
Model No. |
KL-C200-AHD |
|
Image Sensor |
1/4" OV9712 CMOS Sensor |
|
Main Processor |
High performance NVP2431H ISP Processor |
|
Effective Pixels |
1280(H) x 720(V) 1.0MP |
|
Horizontal Resolution |
1000TVL |
|
Min. Illumination |
0.1 Lux / F1.2 , B/W: 0 Lux / F1.2 (With IR ) |
|
S/N Ratio |
>46dB (AGC OFF) |
|
Electronic Shutter |
1/50~1/100000s(PAL), 1/60~1/100000s(NTSC) |
|
Lens |
f3.6MM (optional) |
|
IR Led |
24pcs x F5 |
|
IR Distance |
20M |
|
IR-CUT |
Built-in IR-CUT Module |
|
SHUTTER |
AUTO (1/25,1/50,FLK,1/200,1/400,1/1000,1/2000,1/5000,1/10000,1/50000, X2,X4,X6,X8,X10,X15,X20,X25,X30) |
|
AGC |
0-15 |
|
SENS-UP |
Auto / Off |
|
BRIGHTNESS |
1-100 |
|
D-WDR |
Auto / On / Off |
|
DEFOG |
Auto / Off |
|
Back Light |
HSBLC / BLC / OFF |
|
White Balance |
ATW / AWC-SET / Indoor / Outdoor / Manual / AWB |
|
Day & Night |
Auto/Color/B&W/EXT |
|
3D-DNR |
MIDDLE/HIGH/OFF/LOW |
|
2D-DNR |
MIDDLE/HIGH/OFF/LOW |
|
D-EFFECT |
Freeze / Mirror / Neg-image |
|
Motion Detection |
4 Areas |
|
Privacy |
4 Areas |
|
OSD Languages |
CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/ENG |
|
Synchronization System |
Internal |
|
Video Output |
AHD 1.0Vp-p / 75Ohms(Lightning and static electricity protection) |
|
Input Voltage |
DC 12V (±10%) |
|
Power Consumption |
85mA |
|
Operating Temperature |
-10 °C to +50 °C (14 °F to 122 °F) |
|
Operating Humidity |
20 to 80 % |
|
Storage Temperature |
-10 °C to +60 °C (-40 °F to 140 °F) |
|
Storage Humidity |
< 95 % |
|
Dimension |
110mm x 80mm |
|
Weight |
0.45KG |
