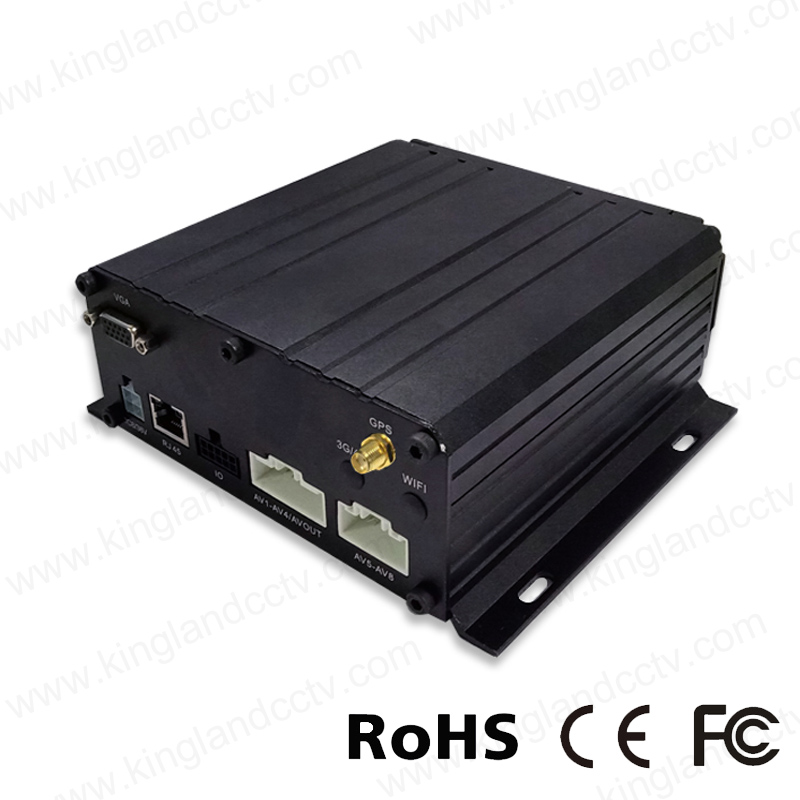

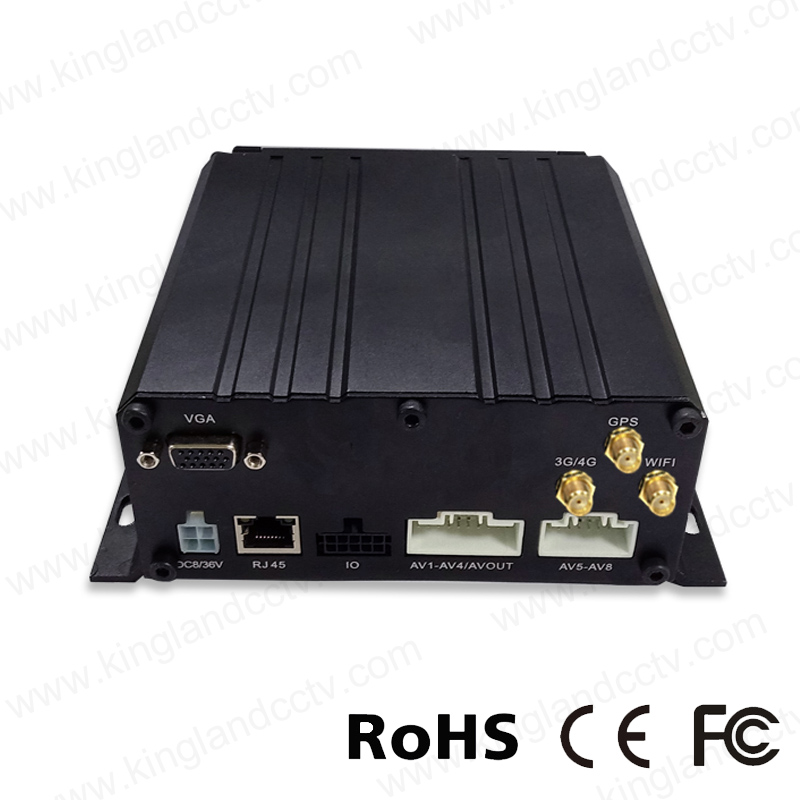

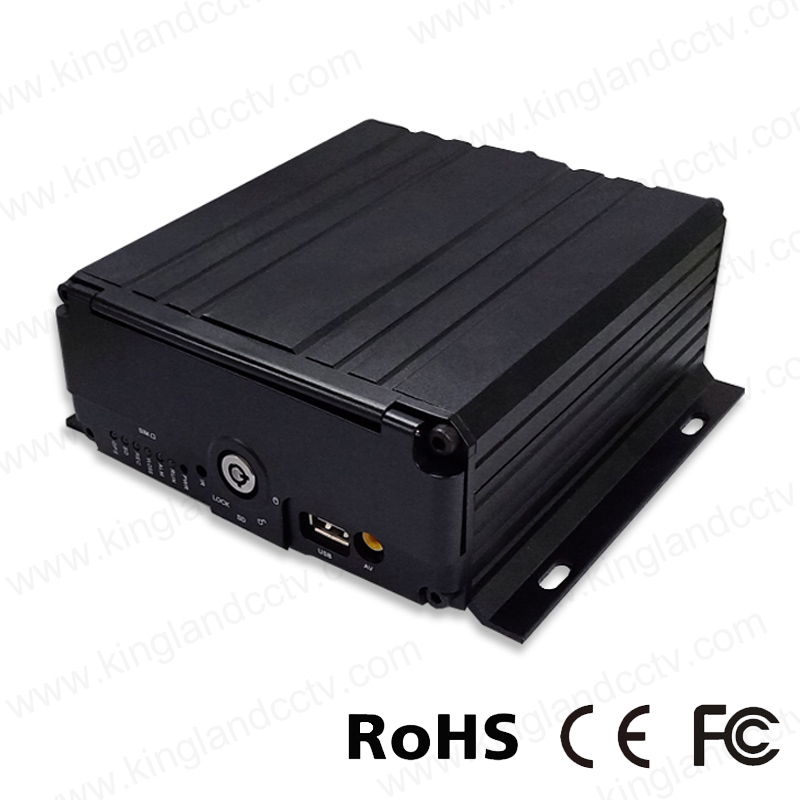

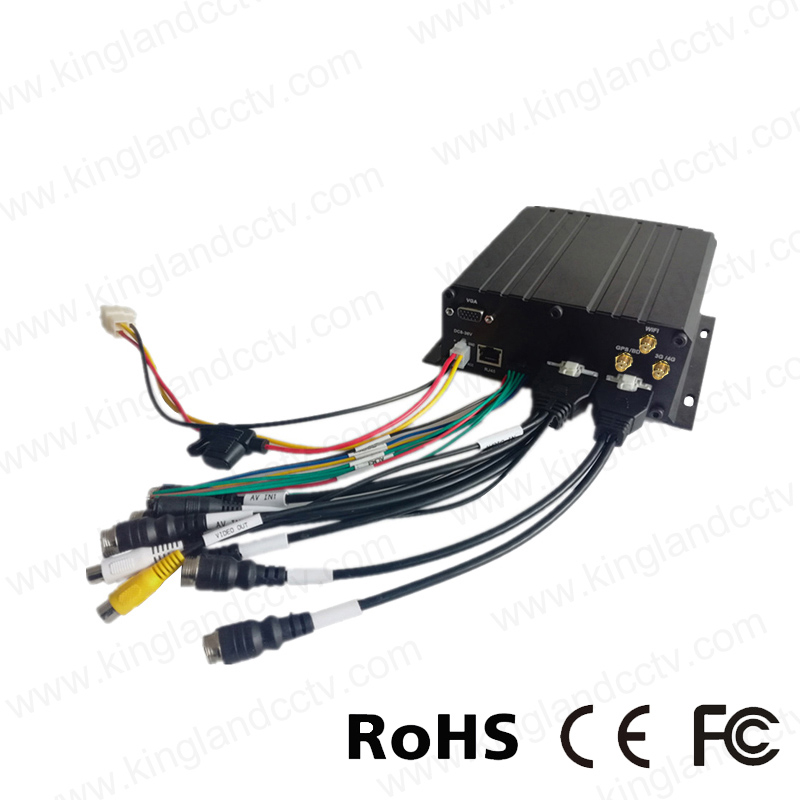

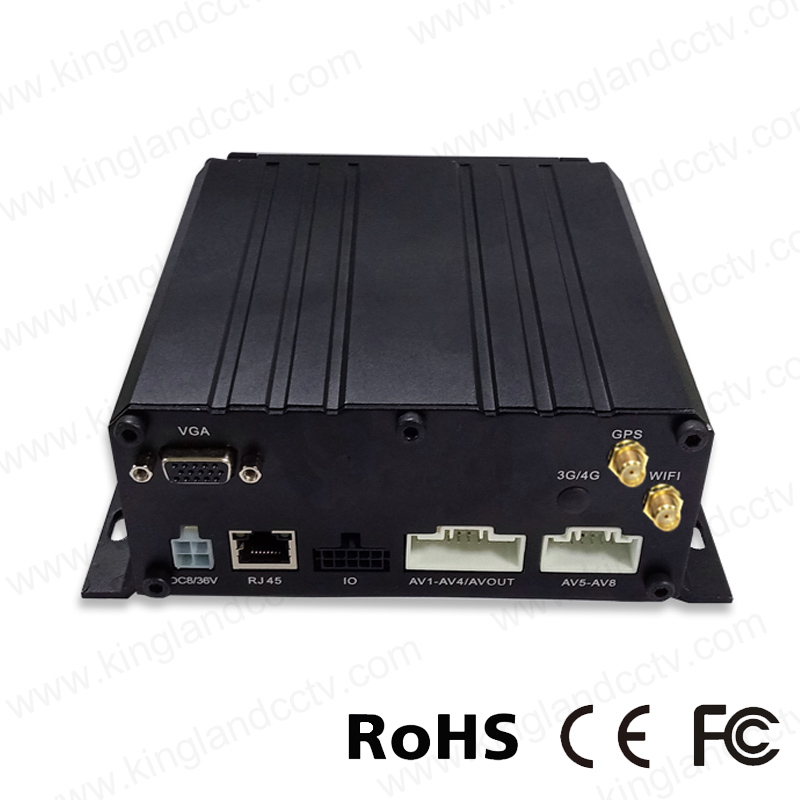

6CH Mobile DVR

  • AHD HDD SD 1080P 6 Channel Mobile DVR
  • AHD HDD SD 1080P 6 Channel Mobile DVR
  • AHD HDD SD 1080P 6 Channel Mobile DVR
  • AHD HDD SD 1080P 6 Channel Mobile DVR
  • AHD HDD SD 1080P 6 Channel Mobile DVR
  • AHD HDD SD 1080P 6 Channel Mobile DVR
AHD HDD SD 1080P 6 Channel Mobile DVRAHD HDD SD 1080P 6 Channel Mobile DVRAHD HDD SD 1080P 6 Channel Mobile DVRAHD HDD SD 1080P 6 Channel Mobile DVRAHD HDD SD 1080P 6 Channel Mobile DVRAHD HDD SD 1080P 6 Channel Mobile DVR

AHD HDD SD 1080P 6 Channel Mobile DVR

  • 1) H.264 video compression, multi code stream
  • 2) Support 6CH 1080P /720P HD real-time video inputs
  • 3) 8-36V wide voltage power supply, super low power consumption
  • 4) Support a 2T 2.5 -inch HDD and 1 256G SD card storage
  • Product description: AHD HDD SD 1080P 6 Channel Mobile DVR

Product description for Ahd hdd 1080P 6channel mobile dvr in cctv dvr for school bus security.


1. H.264 video compression, multi code stream.

2. Support 6CH 1080P /720P HD real-time video inputs. Also, support 6CH analog cameras inputs or compound inputs for 4CH HD cameras and 2CH analog cameras.

3. 1CH VGA output is optional.

4. With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldnt be found, keep the data completed and stable.

5. 8-36V wide voltage power supply, super low power consumption. With overload/ undervoltage/ shortcircuit/ reversing protection, support all vehicles.

6. Support a 2T 2.5 -inch HDD and 1 256G SD card storage

7. With watchdog abnormal restart protection function, it can better protect the machine and video.

8. Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).

9. Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.

10. Support 4CH alarming inputs and 1CH independent alarm input.

11. Optional for 1CH RS232 Serial port or 1CH RS485 extension.

12. Support ministry of communications agreement, support SMS remote configuration and equipment control.

13. Support voice broadcast, intercom and text schedule dispatch.

14. Support fuel sensor, temperature sensor, POS, LED advertising screen.

15. Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.

16. With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.

17. Support all vehicles, including bus, taxi, truck, school bus, etc.


Operating System Linux
Language English, Chinese or Customized language.
Video Compression H.264
OSD Support  time, date, vehicle ID, image, etc.
GUI OSD Interface

Can external connect to LCD and set the system specifications

by remote

Video and Recording Video Input 6CH 1080P AHD/Analog/Compound video input, aviation connector,
1.0Vp-p, 75Ω
Video Output

1CH Compound video output with optional VGA output, 1.0Vp-p,


Support 1CH full screen and 4CH division.
Preview Single/4CH Pictures Preview, support full screen of event trigger or
back view of car reversing
Recording Support 1080P/720P/D1/HD1/CIF, support at maximum 6 Channels 1080P

Optional Recording for Grade 0-7. 0 is the highest and 7 is

the lowest.

Video Rate PAL:100 fps,CCIR625line,50 scenes
NTSC:120 fps,CCIR525line,60 scenes
CIF:256Kbps - 1.5Mbps,8 grades image quality for optional
HD1:600Kbps - 2.5Mbps,8 grades image quality for optional
D1:800Kbps - 3Mbps,8 grades image quality for optional

720P:800Kbps - 4Mbps,8 grades image quality for optional

1080P:2Mbps-6Mbps,8 grades image quality for optional

Recording Mode Default automatic video recording, support ignition video recording,
schedule video recording, alarm video recording, etc
Audio Audio Input 6CH Aviation connector inputs
Audio Output 1CH Aviation connector output, Output level:1V - 2V
Compression format G.726, Speed for 8KB/s
Alarm Input 4CH level alarm inputs
Alarm Output 1CH level signal output
Communication Interface Optional for 1CH RS232 or 1CH RS485
Wireless Transmission


Location /G-sensor

Video Storage Storage Support a 2T 2.5 -inch HDD and 1 256G SD card storage
Upgrade Support SD card local upgrade, remote upgrade automatically
File Format H.264 general video format
File System FAT32 exclusive file system
Video Playback Video Search Search recorded video files by recording time and recording method

Support at max 6 channel synchronous playback, suspend,

forward, backward

Support 2/4/8/16 times speed forward or backward
Security Management

User Password or administrator password management,

support screen locked

Expansion functions TTS Voice broadcast Support TTS voice broadcast
Series port expansion

Support external equipment connecting for advertising screen,

PTZ control, fuel sensor, etc

Power and Consumption Power Management

Self-adaptive wide voltage input, with protect functions for overload,

undervoltage, short circuit, reversing connection, etc

Support time setting startup/shutdown, delayed power off function
Power and Consumption Input Voltage DC:+8V - +36V
Output Voltage +12V-1.5A,+5V-1.5A
Power-off Protection

UPS technology to protect all recorded information automatically


make sure the files undamaged in case of sudden power off.

Consumption Normal working < 14W, standby < 0.5W
Working environment Temperature -20℃ - +70℃
Humidity 20% - 80%
SD Card Type Series Dimension 168*148*65MM
Weight 1.4KG
